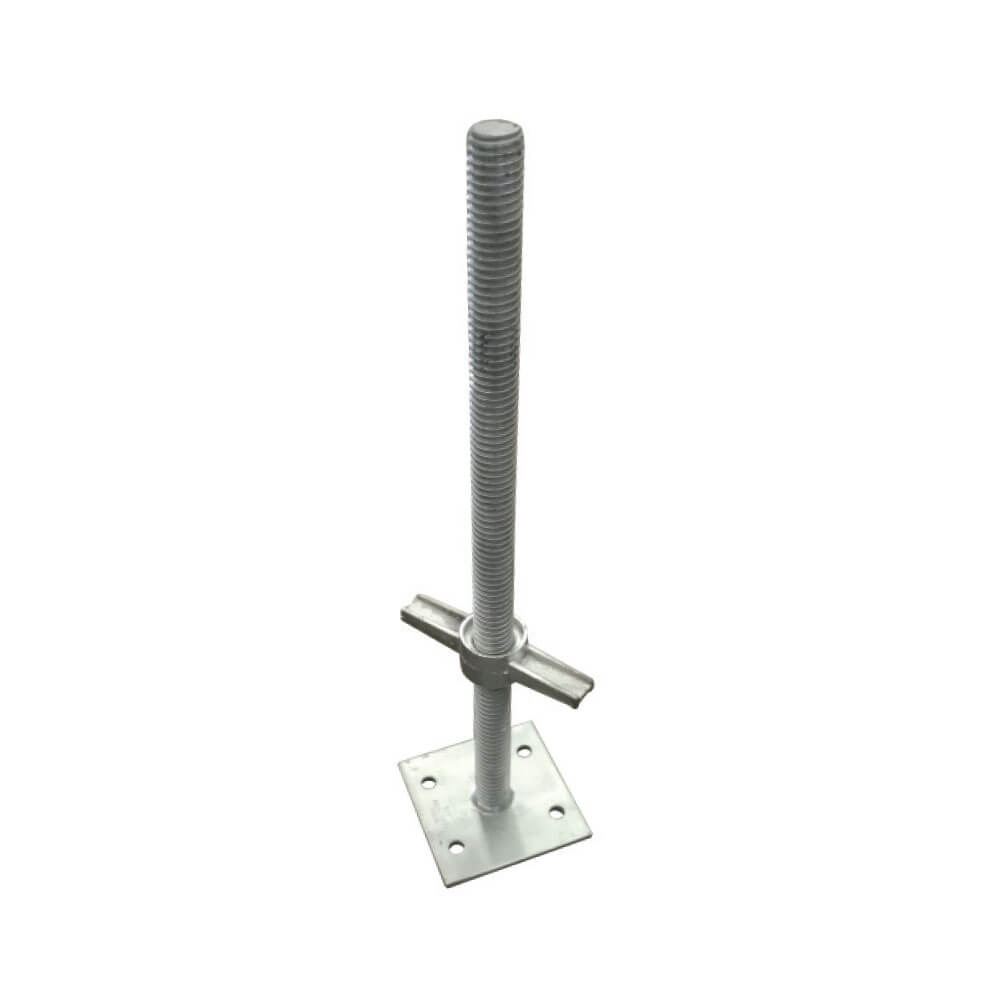

Kwikstage screw jacks are manufactured to support scaffolding and formwork systems on uneven ground. They are essential for load-bearing, distributing weight, and levelling the scaffold on any surface that isn’t flat. The jacks sit at the base of the scaffold with kwikstage standards fitted on top of the 34 x 650mm threaded bar. Attached at the bottom is a 150mm x 8mm thick base plate which takes and distributes the load into the ground. Sole boards sit underneath screw jacks in areas where the terrain is soft and unstable. Swivel jacks are an alternative that supports Kwikstage bays on sloped surfaces.
Features & Benefits
Weight Distribution: Distributes the weight of the structure into the ground.
Adjustable Height: 500mm adjustment to level the scaffold on uneven terrain.
WorkSafe Certified: Screw jacks undergo complete laboratory testing. Rigorous testing ensures functionality and compliance with AS/NZS 1576.2:2009.
| weight (kg) | 6.25 |
|---|---|
| Height (mm) | 650 |
| Adjustable Height (mm) | 500 |
| Threaded Bar Width (mm) | 34 |
| Base Plate Dimensions (mm) | 150 x 150 x 8 |
