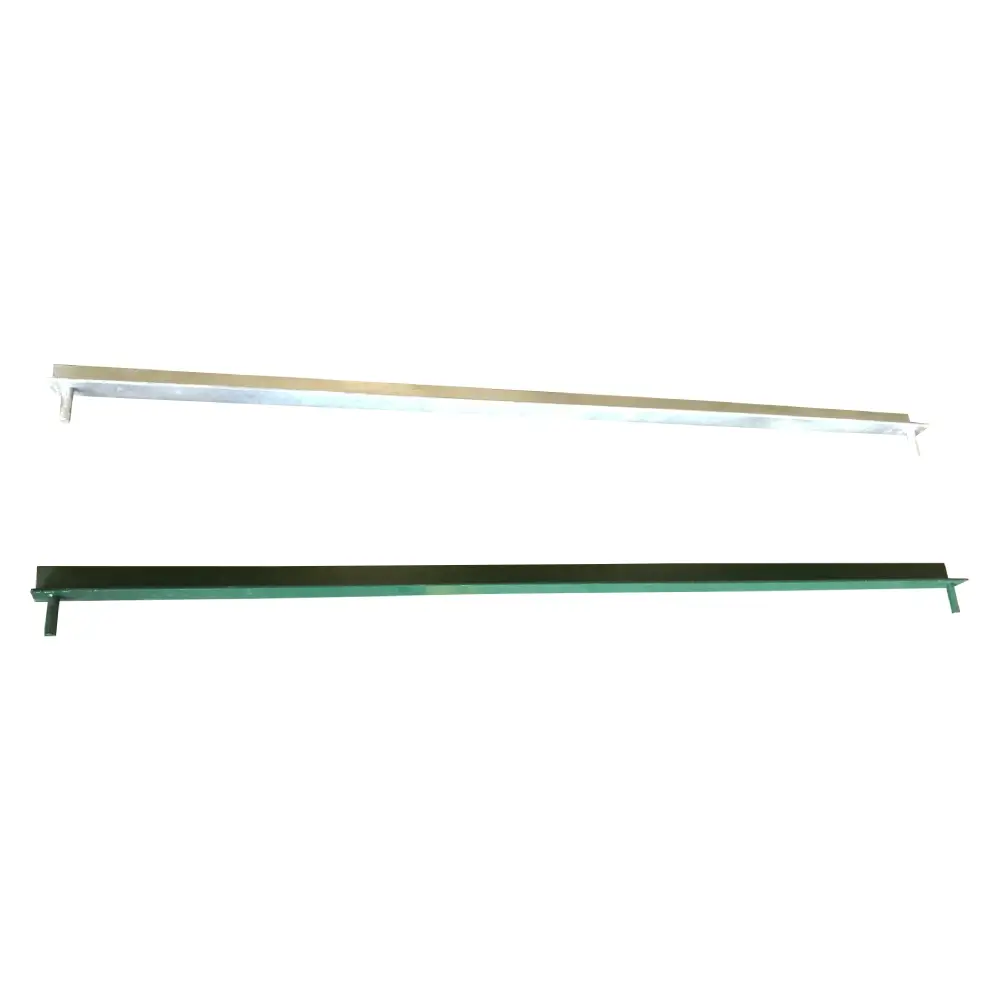

Kwikstage tie bars connect opposite hop-ups to prevent the planks from dislodging on the cantilever platform. A single pin threads through the hop-up, securing the boards in place. The simple design ensures quick and easy installation and dismantling.
Features & Benefits
Easy Attachment: Single pin insert at each end of the tie bar for quick assembly.
WorkSafe Certified: Tie bars undergo complete laboratory testing. Rigorous testing ensures functionality and compliance with AS/NZS 1576.
Secure Platform: Connect two adjacent hop-ups to secure the cantilever platform and prevent dislodging.
Length (mm) | Qty (per pallet) | Weight (kg) | Code (paint/HDG) |
700 | 250 | 1.80 | S0057 / S0094 |
1200 | 250 | 3.00 | S0058 / S0095 |
1800 | 250 | 4.40 | S0059 / S0096 |
2400 | 250 | 5.70 | S0060 / S0097 |
