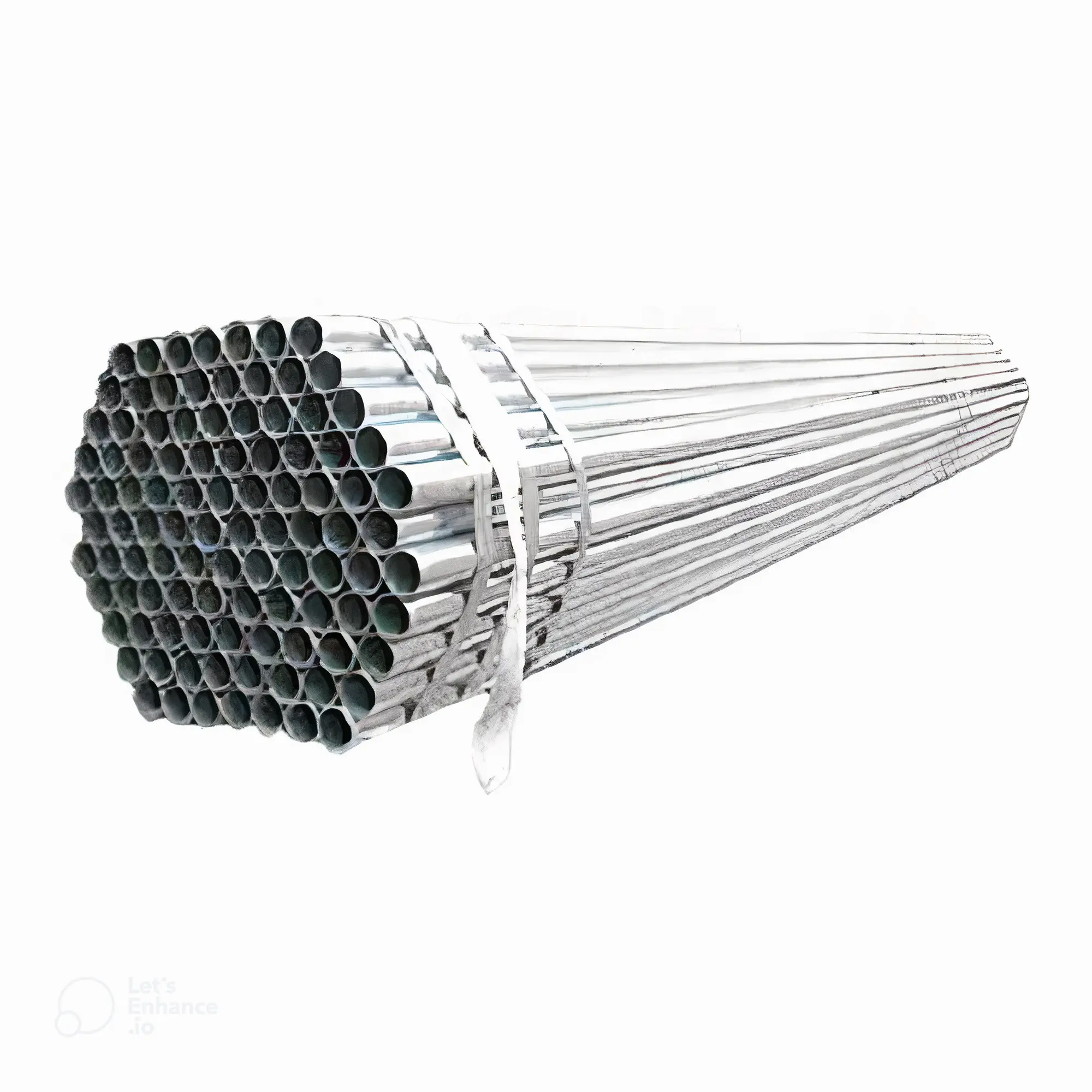

The scaffold tube is a durable, versatile component primarily used in tube and coupler systems. Its multifunctional design lets it work as a brace, support, and handrail. They are also compatible with kwikstage setups and edge protection in specific cases. All tubing is hot-dip galvanised for enhanced corrosion resistance. The galvanisation process protects against rust and severe weather in outdoor environments.
Features & Benefits
Multi-Purpose: High-strength pipes suitable as bracing, supports, ledgers, and transoms.
Galvanised Coating: For long-term protection against corrosion and weather exposure.
WorkSafe Certified: Steel pipes undergo complete laboratory testing. Rigorous testing ensures functionality and compliance with AS/NZS 1163:2016.
Size (mm) | Thickness (mm) | Weight (kg) | Code |
600*48 | 4 | 2.50 | S0099 |
900*48 | 4 | 3.75 | S0098 |
1200*48 | 4 | 5.00 | S0100 |
1500*48 | 4 | 6.26 | S0101 |
1800*48 | 4 | 7.51 | S0102 |
2400*48 | 4 | 10.01 | S0103 |
3000*48 | 4 | 12.51 | S0104 |
3600*48 | 4 | 15.01 | S0105 |
6000*48 | 4 | 25.02 | S0107 |
| Inner Diameter (mm) | 40 |
|---|---|
| Outer Diameter (mm) | 48 |
